| Place of Origin: | JIANGSU CHINA |
| Brand Name: | KONSTANT |
| Certification: | CE |
| Model Number: | KT-X-RAY |
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiate |
| Packaging Details: | neutral gift packing |
| Delivery Time: | 30 days |
| Supply Ability: | 2000 pcs/mth |
| High Light: | Portable Concrete Vibrators,Electric Concrete Vibrators |
||
|---|---|---|---|

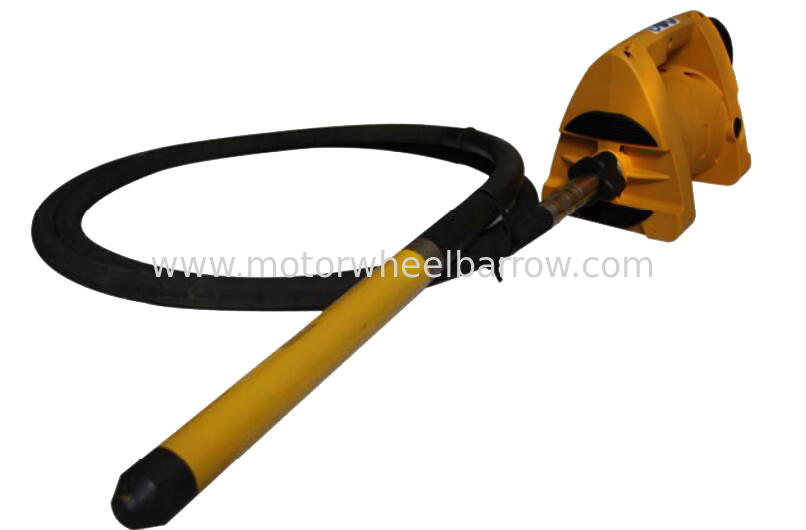

17500 Rpm X - Ray Series Cement Vibrator Concrete Hand Held
Specifications:
| Model | KT-SUPER-X | ||||
| Vibartor Head Diameter(mm) | 28 | 38 | 45 | 48 | 58 |
| Lenth of Flexible shaft(m) | 1~6 | ||||
| Rated Power(w) | 2300 | ||||
| Input Voltage(V) | 230/115 | ||||
| Input Frequency(Hz) | 50/60 | ||||
| Unloaded Speed | 17500 | ||||
| Insulation Class | double insulation IP34 | ||||
| Cord-Plug | H07RN-F 3x1.5mm² | ||||
| Manufacture Standards | EN 60745-2-12:2003 | ||||
Description:
Portable concrete vibrator
Super X is a universal motor for driving an eccentric system of concrete vibrator. with strong housing, qualified rotor& stator high level of carbon brush, it provides both superior dynamic to the flexible shaft & poker, and also reliable performance & long lifetime.
The X series flexible shaft is made by qualified rubber hose with vulcanization protection and high speed inner core, that provides both flexibility & resistance to wear. the outer casing rubber hose is with abrasive rubber, double layer of meshing wire, and high quality spring steel as the lining. the inner core is made by high carbon steel wire that is suitable for high speed working condition.
The X series poker is interchangeable to any flexible shaft. the cap of head is well hardened to reduce the wearing.
Features and Benefits
-Powerful & reliable motor
-Strong & waterproofed housing with integrated filter.
-Well protected brush but easy change, convenient for maintenance.
-Low noise & soft vibration on flexible shaft.
-Easy assembling & disassembling for coupling between motor & shaft, no any tool needed.
-Interchangeable poker head no all flexible shaft.
-Variety size of poker head could be suitable for different working condition.
-High frequency of vibration on poker head
