| Place of Origin: | JIANGSU CHINA |
| Brand Name: | KONSTANT |
| Certification: | CE |
| Model Number: | KTDG6500T |
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Carton |
| Delivery Time: | 30 days |
| Payment Terms: | T/T |
| Supply Ability: | 1000pcs/month |
| High Light: | Residential Diesel Generators,Diesel Power Generators For Home |
||
|---|---|---|---|

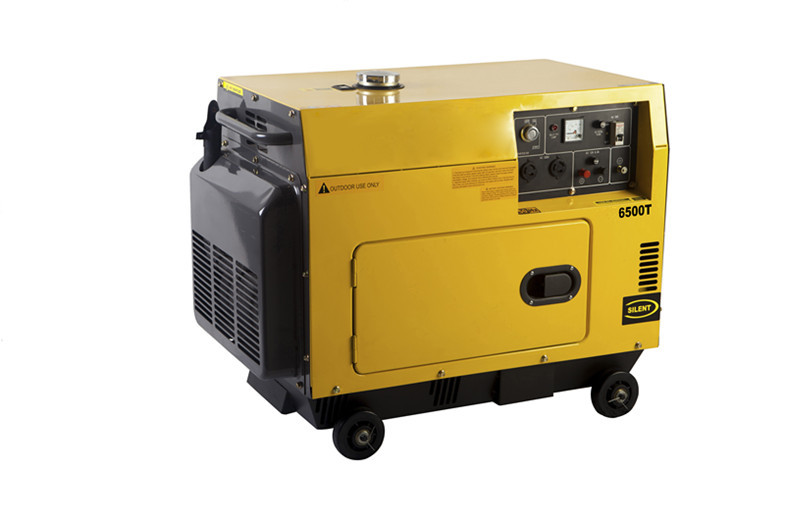

Soundproof Quiet Diesel Engine Generator Set for Bank , Hospital , Train Station
|
MODEL |
KTDG6500T |
||
|
Rated frequency (Hz) |
50 |
60 |
|
|
Rated output (KVA) |
4.5 |
5.0 |
|
|
Max. Output (KVA) |
5.0 |
5.5 |
|
|
Rated Voltage (V) |
115/230 |
120/240 |
|
|
Rated current (A) |
39.2/19.6 |
41.7/20.8 |
|
|
Rated rotation speed (rpm) |
3000 |
3600 |
|
|
Phase NO. |
Single phase, three loops |
||
|
Power factor |
1.0 |
||
|
Insulation Grade |
B |
||
|
Pole number |
2 |
||
|
Excitation mode |
Self-excitation and constant voltage(AVR) |
||
|
Panel Type |
General Panel |
||
|
Output |
Voltage (V) |
115/230 |
120/240 |
|
Receptacle |
Two receptacles |
||
|
Connection pole |
Without |
||
|
DC12V output |
DC receptacle output |
||
|
Overall dimension: L*W*H (mm) |
950*560*750 |
||
|
Dry weight (Kg) |
160 |
||
|
Working assorting weight (Kg) |
170 |
||
|
Noise level(7m) dB(A) |
72 |
||
|
Structure type |
Silent |
||
|
Engine Model |
KT186FA |
||
|
Engine Type |
vertical, four-stroke, direct injection |
||
|
Cylinder NO.-bore×stroke (mm) |
1-86x72 |
||
|
Displacement |
418 |
||
Description:
Soundproof diesel generator rated max output 5KVA
CE approved
Powered by 186FA diesel engine
Reliable quality for long life diesel generator
Circuit breaker protects overload operation
Low oil shut down protection system
One year warranty with free spare parts
Competitive Advantages:
1. Guarantee for one year or 1000hours (according to whichever reaches first) from ex-factory date
2. During the gurantee period, our company will provide the free easy-damaged spare parts or problems caused by quality of production or raw material.
3. After expiration,our company provides cost spare-parts maintenance for engines
