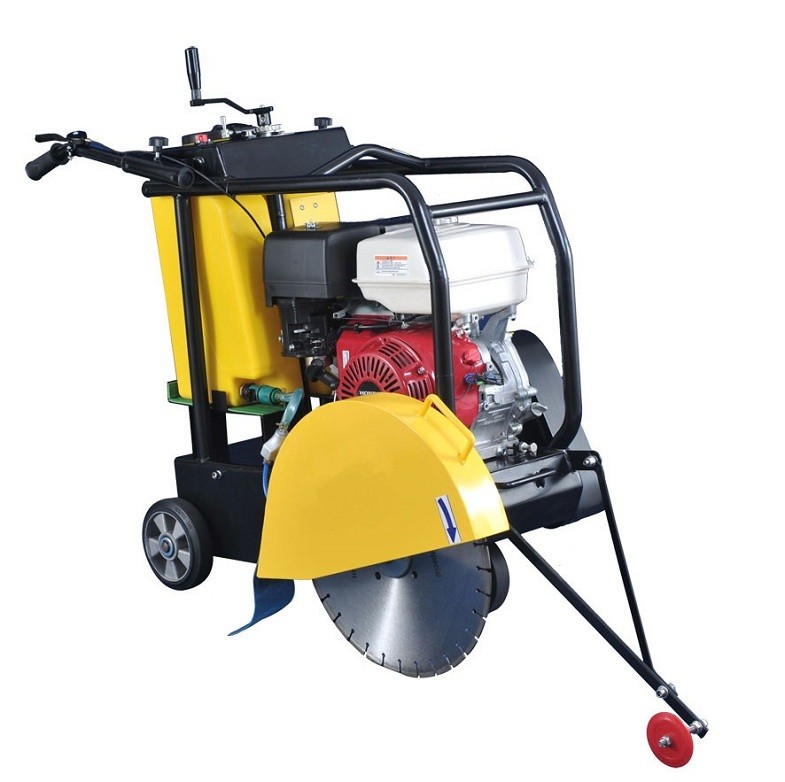

Road Construction Machinery Concrete Cutting Machine with Honda Engine

Road Construction Machinery Concrete Cutting Machine with Honda Engine

    • small.img.alt
    • small.img.alt
    • small.img.alt
    • small.img.alt
  • large.img.alt

    Product Details:

    Place of Origin: JIANGSU CHINA
    Brand Name: KONSTANT
    Certification: CE
    Model Number: KT-QG450

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 pcs
    Price: Negotiated
    Packaging Details: Neutral packing
    Delivery Time: 30 days
    Payment Terms: T/T
    Supply Ability: 500pcs/month
    Contact Now
    Detailed Product Description
    High Light:

    Road Cutter Machine

    ,

    Concrete Road Cutter



    Road Construction Machinery Concrete Cutting Machine with Honda Engine





    Model

    KT-QG450H

    KT-QG450S

    KT-QG450D

    Engine

    Petrol, Honda GX390

    Petrol, Subaru EX40

    Diesel, HP186F

    Type of Combustion

    Air-cooled, single cylinder,4-stroke

    Disc diameter cm(in)

    35(14”); 40(16”); 45(18”); 50(20”)

    Max. Cutting depth cm(in)

    14.5 (5.7”)

    Operating weight

    116kg

    Packing Size cm(in)

    93*61*110 (37*24*43)

    Other engines are available as requested



    Description:

    This machine is used for cutting the expansion joint on concrete floor. Meanwhile, it can cut and groove all standard manufactures of concrete, marble and granite. It is a necessary machine in the construction of road.

    Super-rigid box frame ensures straight cuts while resisting warping and vibration-prolongs saw life; extends blade life. Height adjustment handle with comfortable grip handles, easy crank for raising/lowing cutting depth. Hinged front lift-up blade guard is designed to provide easy blade replacement; easy-remove, restless poly water tank provides an optimum flow and volume of water to the blade.

    It uses sheet diamond, which has the virtues of quick cutting speed, and even cut. Meanwhile, sheet diamond could cut the steal beams in concrete. It has simply, safety construction, easy and flexible operations.



    Main Features:
    Comfortable grip handles
    Easy crank for raising/lowering cutting depth
    Hinged front, lift-up blade guard is designed to provide easy blade replacement
    Saw position guide helps ensure straight cuts
    Water system provides an optimum flow and volume of water to the blade


    Competitive Advantage:

    Ergonomics designed handle makes the operation more comfortable and speedy.

    Special protective covering protects the engine perfectly and makes the transportation more safely.

    The unique designed water tank provides adequate water supply and perfect cooling effect, no residual water  and makes the maintenance easier.

    Special blade cover makes the assembling and disassembling more easier.

    Folding guide wheel for accurate cutting

    Adjustable cutting depth assures the cutting working more precise and efficient.
