| Place of Origin: | JIANGSU CHINA |
| Brand Name: | KONSTANT |
| Certification: | CE |
| Model Number: | KT-MD300C |
| Minimum Order Quantity: | 3 pcs |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Neutral Packing |
| Delivery Time: | 30 days |
| Payment Terms: | T/T |
| Supply Ability: | 500pcs/month |
| High Light: | Motor Powered Wheelbarrow,Heavy Duty Wheelbarrow |
||
|---|---|---|---|
Specifications:

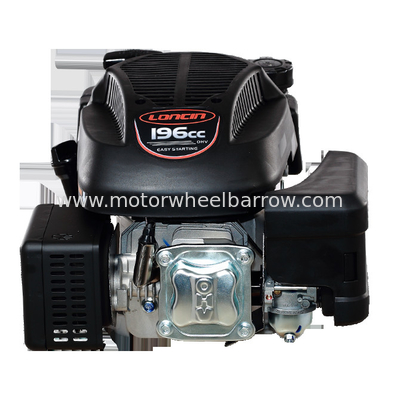

| MICRO DUMPER KT-MD300C SPECIFICATIONS | LONCIN ENGINE SPECIFICATIONS | ||
| Model | KT-MD300C | Model | Loncin 196cc |
| Engine | Loncin engine 196cc | Engine Type |
Single cylinder, 4-stroke, air-cooled, OHV |
| Transmission |
Transaxle 4 forward / 1 reverse speed |
Displacement (cc) | 196cc |
| Fuel | Unleaded petrol | Bore x Stroke | 70mm×51mm |
| Capacity | 8cu.ft. or 300kgs/ 650lbs weight | Torque | 10.5 N.m/2500rpm |
| Noise Rating | 79db | Ignition system | Transistorized magneto |
| Brake | Disk | Speed Governing | Centrifugal mass type |
| Cables | Protected | Oil Capacity | 0.6L |
| Wheels | Front 400 x 10, 4 ply, rear 400 x 8 | Fuel Tank Capacity | 1.0L |
| Dimensions |
L- 173cm/68", W- 75cm/29", H- 87cm/34” |
Net Weight | 12.8kg |
| Package |
Angle iron welded frame, Packing size 1300*750*720mm |
Length (mm) | 385 |
| Weight | 130kg | Width (mm) | 358 |
| Loading Quantity |
20FCL- 36pcs; 40FCL/40HQ- 75pcs |
Height (mm) | 278 |
Description:
Features of KT-MD300C Dumper
Factory Overview:
Machine Manufacture :
Ready for packing:
