| Place of Origin: | JIANGSU CHINA |
| Brand Name: | KONSTANT |
| Certification: | CE |
| Model Number: | KT-RM75 |
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | Negotiated |
| Packaging Details: | 1 set/ carton |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500pcs/month |
| High Light: | Rammer Tamper,Tampering Rammer |
||
|---|---|---|---|

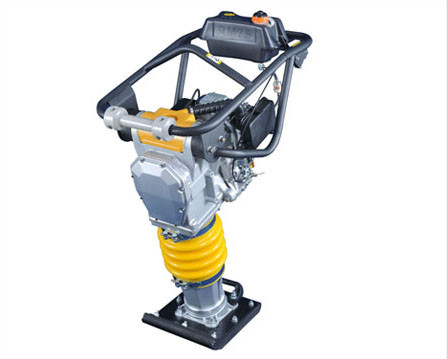

4.0 HP Honda Engine GX120 Tamping Rammer Machine 14KN Impact Force 72kgs
Specification:
| Model | KT-RM75 | |
| Engine | Honda GX120 | Robin EH12-2D |
| Type of Combustion | Air-cooled,single cylinder,4-stroke | |
| Power kw(hp) | 3.0(4.0) | 3.0(4.0) |
| Impact force kn | 14 | |
| Leap height | 40-80(1.8-3.2) | |
| Advancing speed | 9-12m/min | |
| Ramming frequency: | 640-680 times/min | |
| Plate size mm(in) | 340x280(13.4x11) | |
| Weight kg | 72 | |
| Carton size mm | 770x480x1150 | |
| Load quantity | 144pcs/40GP | |
Description:
Compacting the gravel, clay and sand, can be used in the compactness of the road, bridge foundation, house, reservoir dam, especially the narrow worksite, such as the floor inside the house, yard and trench. it is competent at the construction that the large and middle impacting machinery can not do.
Gasoline tamping rammer are driven by 4-stroke petrol engines designed specially for rammers. No need to mix fuel and oil, easy starting ,low-noise operation, low maintenance and reduced fuel consumption. Electric rammer are more friendly for environment.
A heavy duty throttle control provides more reliable and longer service.
Additional built-in air filtration system plus the original air cleaners in the engine provides cleaner air to engine for longer life and improvident durability.
An integrated fuel valve provides for easy starting.
Heavy shock mount system to reduce hand-arm vibration and improve operator comfort.
Plastic oil tank offers longer life and rust-free
Rammer shoe made of steel plate with wooden insert offers economical usage.
Special protective frame for engine ,prevents any possible damage on tough jobsite.
Specially designed trolley kit for easy transportations.
High quality polyurethane sheath accept more compacting force, offers a reliable lubricating system.
Applications:
Compacting the gravel, clay and sand, can be used in the compactness of the road, bridge foundation, house, reservoir dam, especially the narrow worksite, such as the floor inside the house, yard and trench. it is competent at the construction that the large and middle impacting machinery can not do.
Competitive Advantage:
Honda GX120 is designed for tamping rammer
No need to mix fuel and oil, easy starting, low-noise operation, low maintenance and reduced fuel consumption comparing to 4-stroke engine.
High quality, Chinese made bellow. German bellow is optional.
Heavy shock mount system to reduce hand-arm vibration and improve comfort
Rammer shoe made of steel plate with wooden insert offers economical usage
Special protective frame for engine, prevents any possible damage on tough job site
Additional built-in air filtration
Optional wheel kit for easy transportation.
